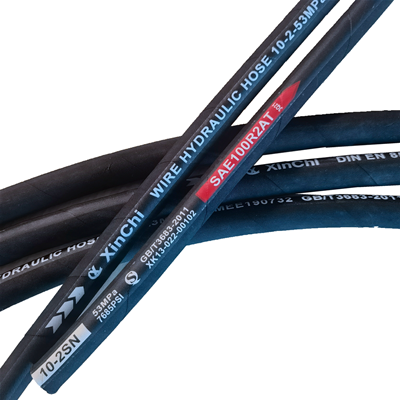

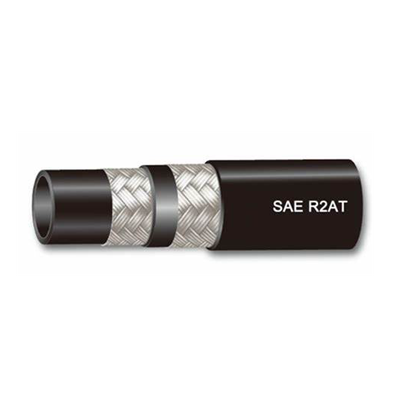

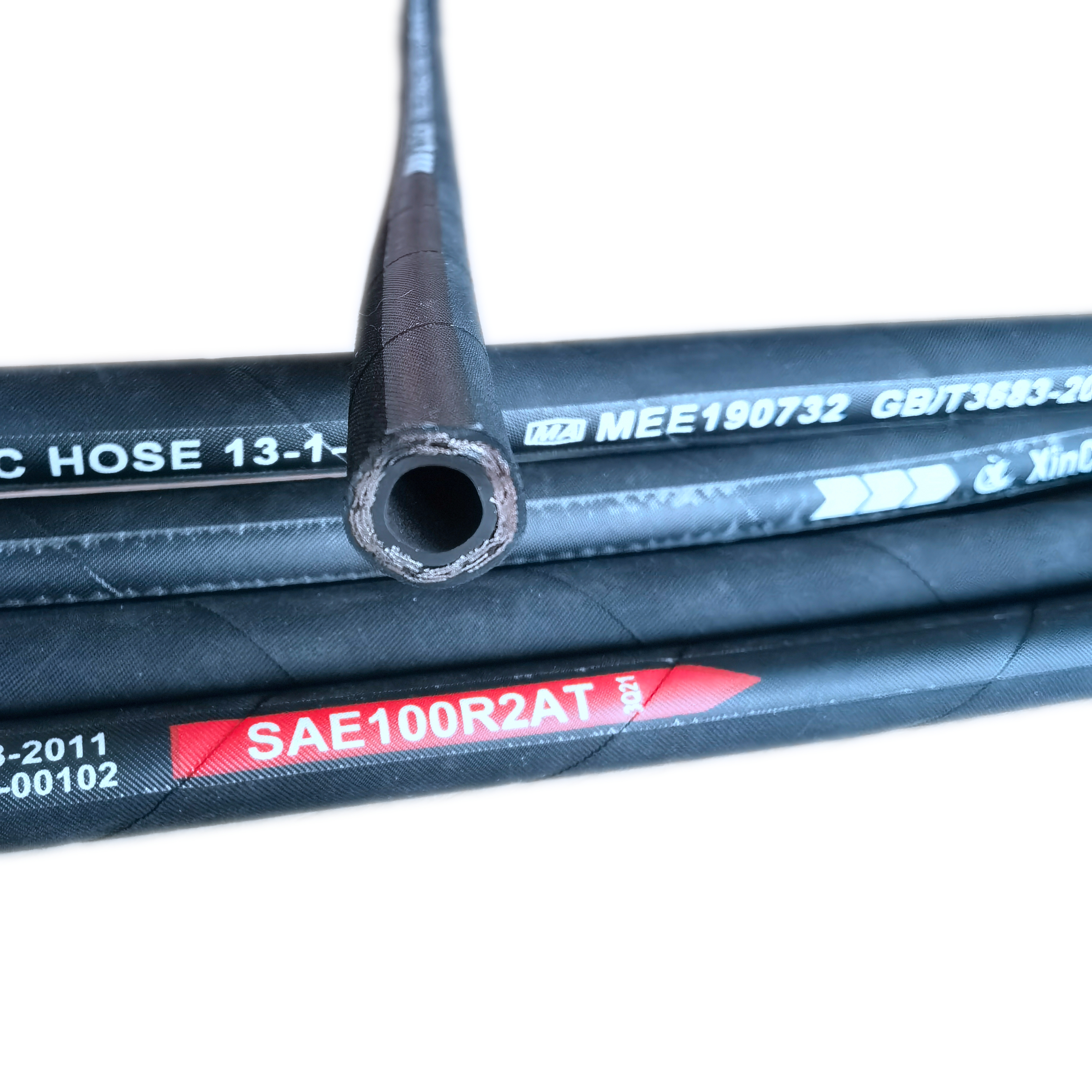

SAE100 R2
Applications:
High pressure hose suitable for use with petroleum based hydraulic fluids, lubricating oils, water, and water emulsion hydraulic fluids.
|
Size |
I.D(MM) |
W.D(MM) |
O.D(MM) |
W.P |
P.P |
B.P |
Min B.R |
|||||
|
mm |
Inch |
Min |
Max |
Min |
Max |
Min |
Max |
Mpa |
Mpa |
Mpa |
Inch |
mm |
|
5 |
3/16 |
4.6 |
5.4 |
10.6 |
11.6 |
12.7 |
14 |
41.5 |
83 |
166 |
3.54 |
90 |
|
6.3 |
1/4 |
6.2 |
7 |
12.1 |
13.3 |
14.3 |
16 |
40 |
80 |
160 |
3.94 |
100 |
|
8 |
5/16 |
7.7 |
8.5 |
13.7 |
14.9 |
15.9 |
17 |
35 |
70 |
140 |
4.53 |
115 |
|
10 |
3/8 |
9.3 |
10.1 |
16.1 |
17.3 |
18.3 |
20 |
33 |
66 |
132 |
5.12 |
130 |
|
12.5 |
1/2 |
12.3 |
13.5 |
19 |
20.6 |
21.4 |
23 |
27.5 |
55 |
110 |
7.09 |
180 |
|
16 |
5/8 |
15.5 |
16.7 |
22.2 |
23.8 |
24.6 |
26 |
25 |
50 |
100 |
7.87 |
200 |
|
19 |
3/4 |
18.6 |
19.8 |
26.2 |
27.8 |
28.5 |
30 |
21.5 |
43 |
86 |
9.45 |
240 |
|
25 |
1 |
25 |
26.4 |
34.1 |
35.7 |
37.3 |
39 |
16.5 |
33 |
66 |
11.81 |
300 |
|
31.5 |
1-1/4 |
31.4 |
33 |
43.3 |
45.7 |
47.1 |
50 |
12.5 |
25 |
50 |
16.54 |
420 |
|
38 |
1-1/2 |
37.7 |
39.3 |
49.6 |
52 |
53.3 |
56 |
9 |
18 |
36 |
19.69 |
500 |
|
51 |
2 |
50.4 |
52 |
62.3 |
64.7 |
66 |
69 |
8 |
16 |
32 |
24.8 |
630 |
