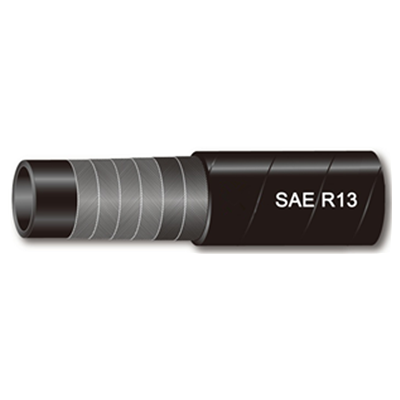

SAE100 R13
Applications:
Extreme high pressure hose suitable for use with petroleum based hydraulic fluids, lubricating oils, water, and water emulsion hydraulic fluids.
|
Size |
I.D (mm) |
W.D(MM) |
O.D(MM) |
W.P |
B.P |
W.T |
||||
|
mm |
Inch |
Min |
Max |
Min |
Max |
Min |
Max |
Mpa |
Mpa |
Kg/m |
|
19 |
3/4 |
18.6 |
19.8 |
28.2 |
29.8 |
31.0 |
33.2 |
35.0 |
140.0 |
1.53 |
|
25 |
1 |
25.0 |
26.4 |
34.1 |
36.0 |
37.6 |
39.8 |
35.0 |
140.0 |
2.09 |
|
32 |
1-1/4 |
31.4 |
33.0 |
45.6 |
48.0 |
48.3 |
51.3 |
35.0 |
140.0 |
3.76 |
|
38 |
1-1/2 |
37.7 |
39.3 |
53.1 |
55.5 |
55.8 |
58.8 |
35.0 |
140.0 |
4.58 |
|
51 |
2 |
50.4 |
66.9 |
66.9 |
69.3 |
69.5 |
72.7 |
35.0 |
140.0 |
6.69 |
