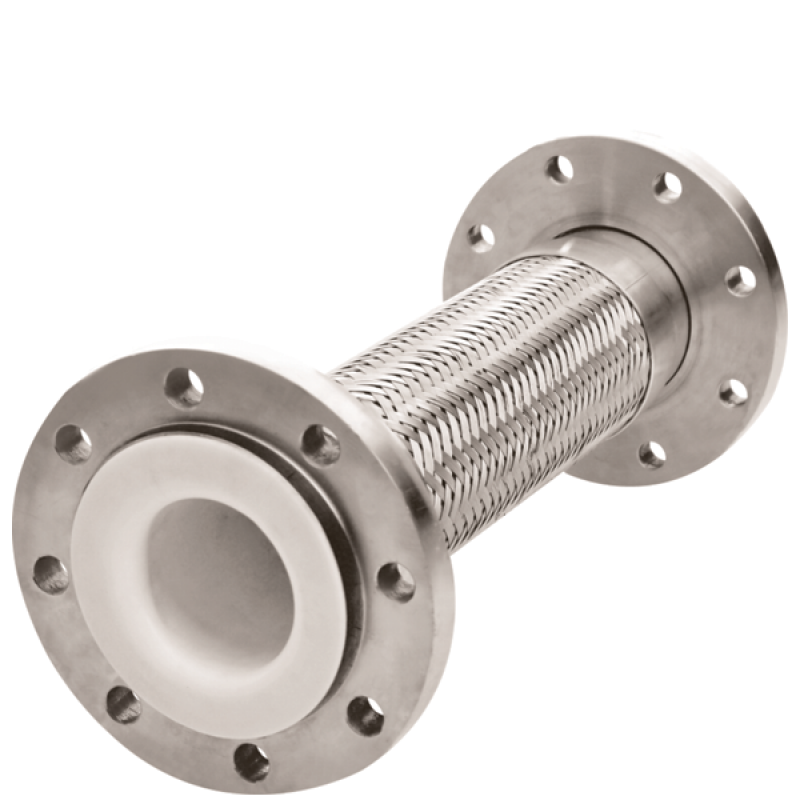

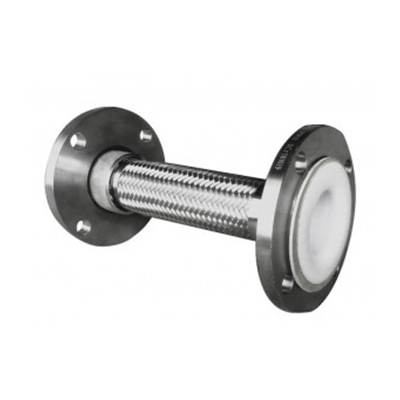

PTFE Lined Metal Hose
Polytetrafluoroethylene (PTFE) is an engineered fluoropolymer, outstanding resistance to chemicals is one of the primary
attributes. The temperature range is -500C to +210C making this product suitable for the majority of fluid and ambient
temperature conditions found in different industries. Additionally, PTFE will withstand flexing and vibration without
failure from flex fatigue. PTFE is chemically inert, it will not break down or deteriorate in service and it has an unlimited
dhelf life because properties do not charge with age or exposure to weather conditions.
Parameters:
|
ID (MM/INCH) |
OD (mm) |
B.RADIUS(MM) |
W.P (Mpa) |
B.P(Mpa) |
||||
|
TUBE |
BRAIDS |
1layer |
2 layers |
1layer |
2 layers |
|||
|
13 |
1/2 |
20 |
22 |
120 |
7.5 |
10 |
22.5 |
30 |
|
16 |
5/8 |
23 |
25 |
150 |
6.4 |
9 |
19.2 |
27 |
|
20 |
3/4 |
28 |
30 |
180 |
5 |
8 |
15 |
24 |
|
25 |
1 |
35 |
37 |
280 |
4 |
7.5 |
12 |
22.5 |
|
32 |
1-1/4 |
43 |
45 |
340 |
3.5 |
6.4 |
10.5 |
19.2 |
|
40 |
1-1/2 |
51 |
53 |
450 |
3 |
5.6 |
9 |
16.8 |
|
50 |
2 |
62 |
64 |
550 |
2.5 |
4 |
7.5 |
12 |
|
65 |
2-1/2 |
79 |
82 |
650 |
2 |
3.2 |
6 |
9.6 |
|
80 |
3 |
97 |
100 |
800 |
2 |
2.5 |
6 |
7.5 |
|
100 |
4 |
122 |
125 |
1000 |
1.6 |
2.5 |
4.8 |
7.5 |
|
125 |
5 |
151 |
155 |
1200 |
1.5 |
2.5 |
4.5 |
7.5 |
|
150 |
6 |
180 |
184 |
1500 |
1.5 |
2.5 |
4.5 |
7.5 |
|
200 |
8 |
240 |
245 |
2000 |
1.2 |
2 |
3.6 |
6 |
|
250 |
10 |
298 |
303 |
2200 |
1 |
1.6 |
3 |
4.8 |
|
300 |
12 |
360 |
365 |
2500 |
1 |
1.6 |
3 |
4.8 |
|
350 |
14 |
410 |
415 |
3000 |
1.6 |
1.6 |
4.8 |
4.8 |
|
400 |
16 |
460 |
465 |
3500 |
1.6 |
1.2 |
4.8 |
3.6 |
|
450 |
18 |
520 |
525 |
4000 |
1.6 |
1.2 |
4.8 |
3.6 |
|
500 |
20 |
570 |
575 |
4500 |
1.6 |
1 |
4.8 |
3 |
|
600 |
24 |
670 |
675 |
5500 |
1.6 |
1 |
4.8 |
3 |
