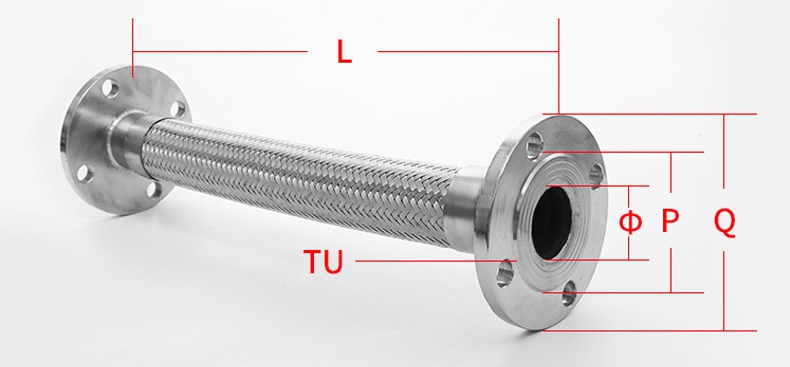

DN

W.P

Flange Size (mm)

Length

mm

inch

Mpa

Q

P

T

U

Length upon request

15

1/2

2.5

95

65

4

14

20

3/4

2.5

105

75

4

14

25

1

1.6

115

85

4

14

32

1 1/4

1.6

140

100

4

18

40

1 1/2

1.2

150

110

4

18

50

2

1.2

165

125

4

18

65

2 1/2

1.2

185

145

4

18

80

3

1.2

200

160

4

18

100

4

1.2

220

180

8

18

125

5

1.2

250

210

8

18

150

6

1.2

285

240

8

23

200

8

1.0

340

295

12

23
