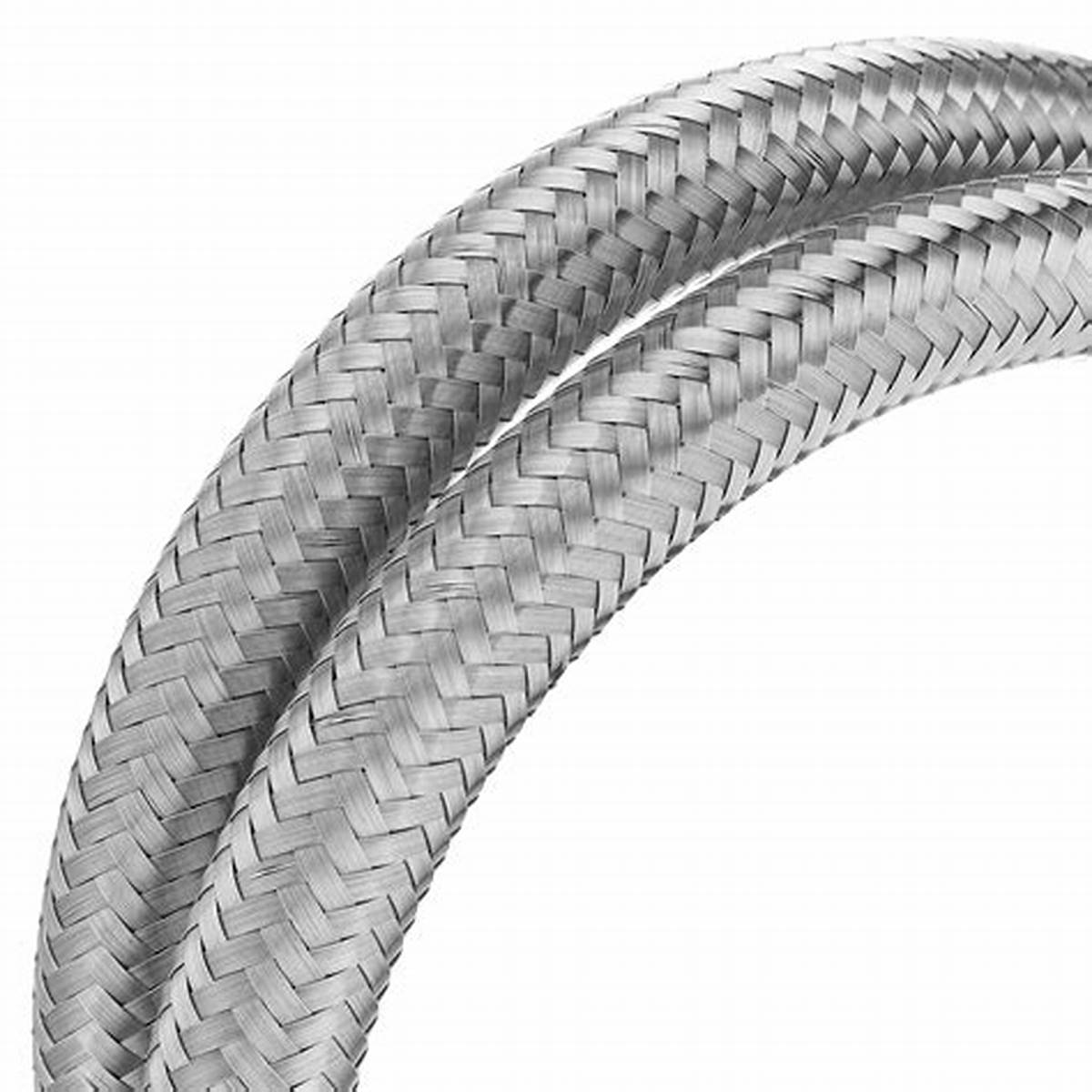

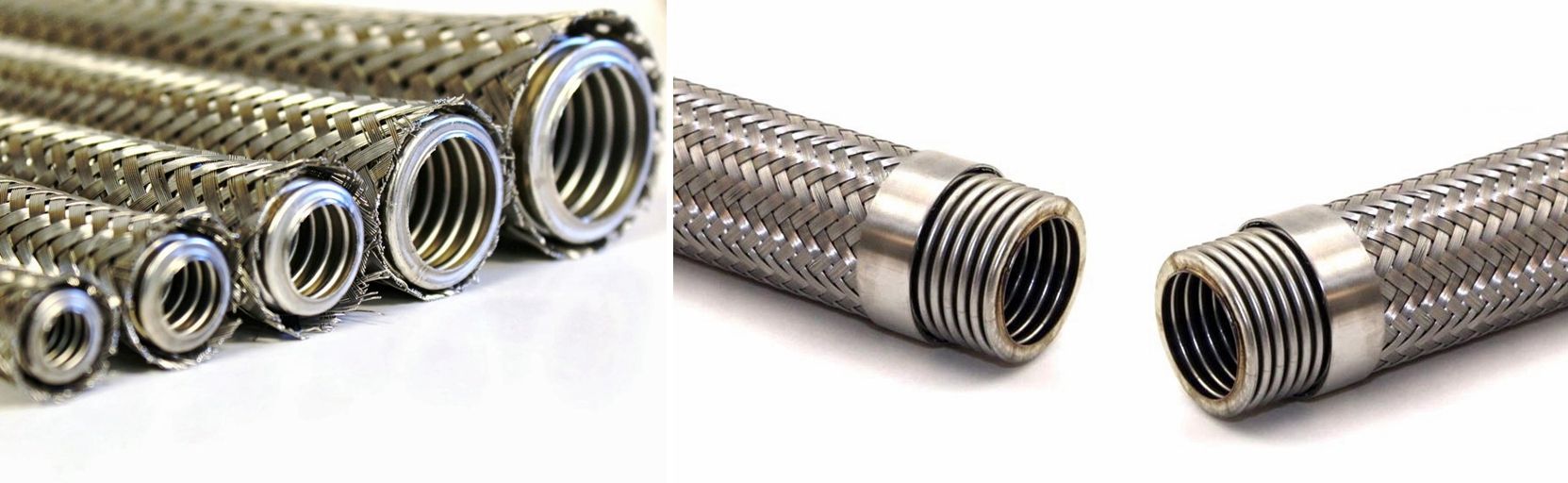

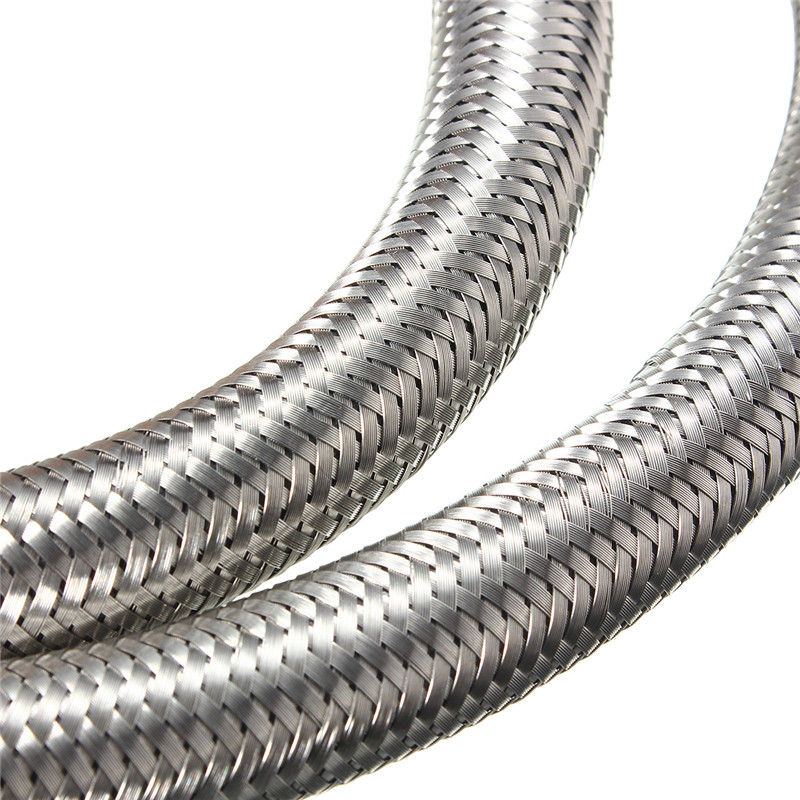

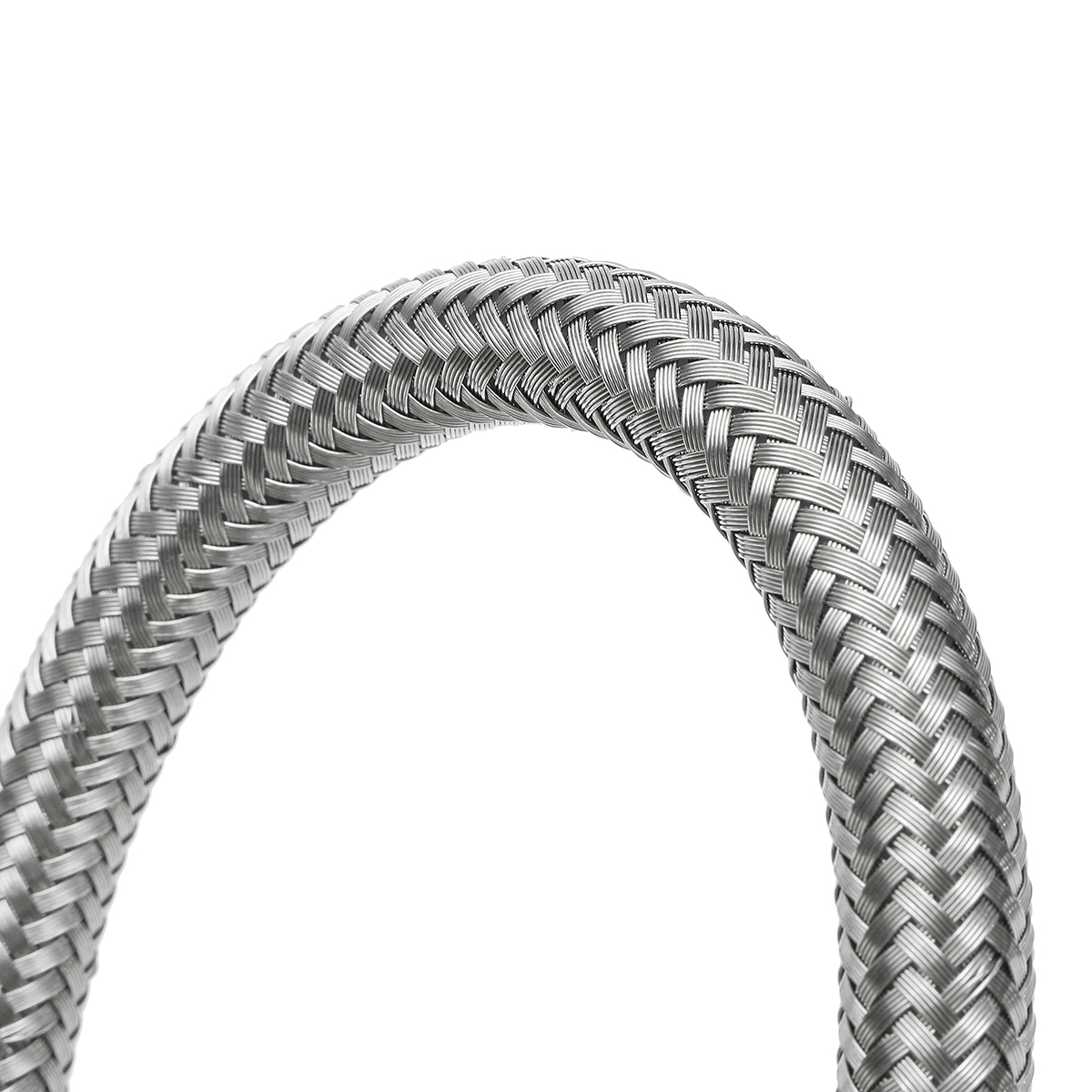

Wire Braided Metal Hose

Short Description:

Tube: Stainless steel inner corrugated hose (SS 3xx series)

Cover (mesh): High tensile steel wire braids (SS 3xx series).

Temperature: -196 °C to +420 °C

Send email to us

Product Detail

Product Tags

WHY METAL HOSE

Metal hose assemblies are often used where rubber, plastic, PTFE, or other types of hose ducts are unsuitable. Reinforced corrugated metal hose provides for the transfer of liquids or gases, and is engineered to handle extreme temperature and pressure. Metal hose may be appropriate where other types of hoses are not, such as the transfer of extremely high temperature liquids or gases or transferring extremely cold (cryogenic) liquids.

Annular Wave Hose

ID		OD		Bend Radius	W .P	Weight
ID		Tube	Braid Reinforce.	Bend Radius	W .P	Tube	Braid Reinforce.
Inch	mm	mm	mm	mm	Mpa	Kg/m	Kg/m
1/2	12	18.5	20	120	7.5	0.21	0.25
5/8	16	23	25	150	6.4	0.26	0.3
3/4	20	28	30	180	5	0.35	0.35
1	25	35	37	280	4	0.47	0.4
1-1/4	32	43	45	340	3.5	0.51	0.5
1-1/2	40	51	53	450	3	0.7	0.6
2	50	62	64	550	2.5	0.85	0.9
2-1/2	65	79	82	650	2	1.41	1.3
3	80	97	100	800	2	1.62	1.8
4	100	122	125	1000	1.6	2	2
5	125	151	155	1200	1.5	3.3	3
6	150	180	184	1500	1.5	4.3	4
7	175	210	215	1750	1.2	5.8	4.5
8	200	240	245	2000	1.2	7	5
10	250	298	303	2200	1.6	10.6	16
12	300	360	365	2500	1.6	13	20
14	350	410	415	3000	1.6	20	25
16	400	460	465	3500	1.6	24	30
18	450	520	525	4000	1.6	30	40
20	500	570	575	4500	1.6	36	50
24	600	670	675	5500	1.6	55	70

Spiral Wave Hose

ID		OD		Bend Radius	W .P	Weight
ID		Tube	Braid Reinforce.	Bend Radius	W .P	Tube	Braid Reinforce.
Inch	mm	mm	mm	mm	Mpa	Kg/m	Kg/m
1/4	6.3	9	10.5	150	6.4	0.06	0.1
5/16	7.9	10.9	12.5	160	6.4	0.08	0.12
3/8	10.8	15.2	16.8	180	5	0.13	0.15
1/2	13.4	18.5	20	240	4	0.17	0.2
5/8	16	21.5	23	300	3.5	0.2	0.25
3/4	19.1	25.6	27.2	340	3	0.24	0.3
1	25.4	32.6	34.2	400	2.5	0.38	0.4
1-1/4	32.9	40.6	42.2	480	2.5	0.48	0.5
1-1/2	39.3	47.6	50.2	600	2.5	0.5	0.6
2	50.8	61.5	63.5	780	2.5	0.88	0.9
